Provision a Google Axion C4A Arm-based VM

In this section, you’ll create a Google Axion C4A Arm-based virtual machine (VM) on Google Cloud Platform (GCP). You’ll use the c4a-standard-4 machine type with four vCPUs and 16 GB of memory. This VM will host your OpenCV application.

Note

For help with GCP setup, see the Learning Path Getting started with Google Cloud Platform .

Provision a Google Axion C4A Arm VM in Google Cloud Console

To create a virtual machine based on the C4A instance type:

  1. Navigate to the Google Cloud Console .
  2. Go to Compute Engine > VM Instances and select Create Instance.

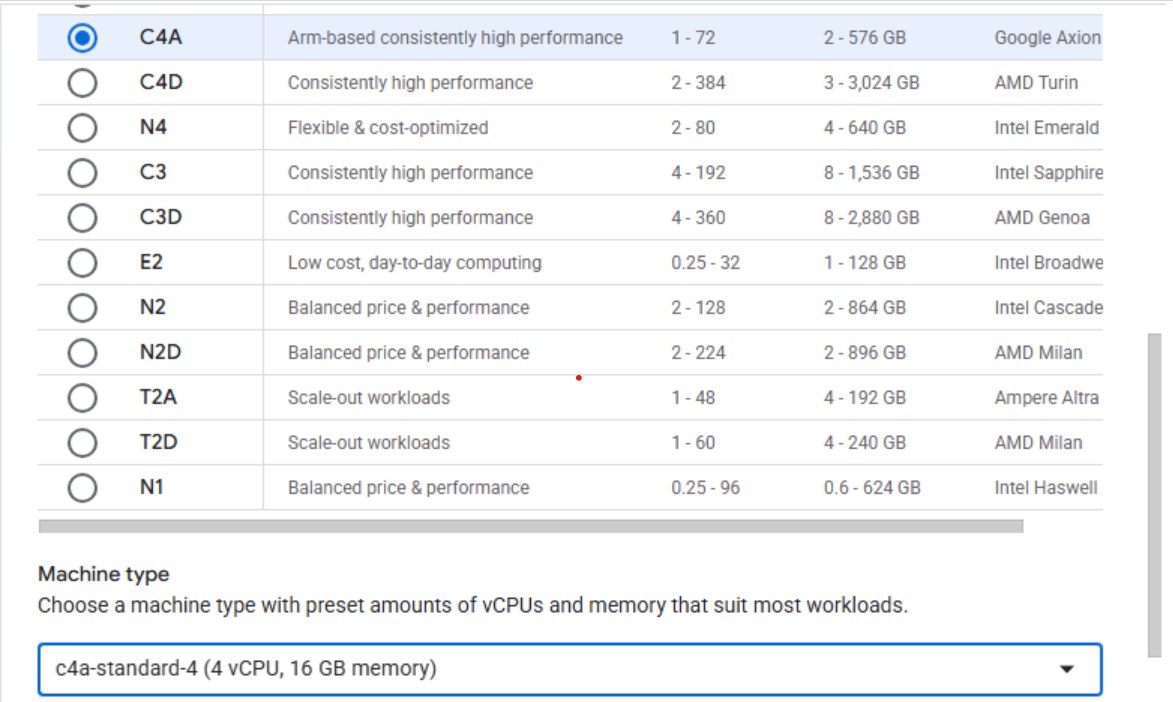

  3. Under Machine configuration:
    • Populate fields such as Instance name, Region, and Zone.
    • Set Series to C4A.
    • Select c4a-standard-4 for Machine type.

Image Alt Text:Screenshot of the Google Cloud Console showing the Machine configuration section. The Series dropdown is set to C4A and the machine type c4a-standard-4 is selectedConfiguring machine type to C4A in Google Cloud Console

  1. Under OS and storage, select Change, and then choose an Arm64-based operating system image. For this Learning Path, select SUSE Linux Enterprise Server.
    • For the license type, choose Pay as you go.
    • Increase Size (GB) from 10 to 100 to allocate sufficient disk space.
    • Select Choose to apply the changes.
  2. Expand the Networking section and enter allow-opencv in the Network tags field. This tag links the VM to the firewall rule you created earlier, so your browser can access the OpenCV output.
  3. Select Create to launch the virtual machine.

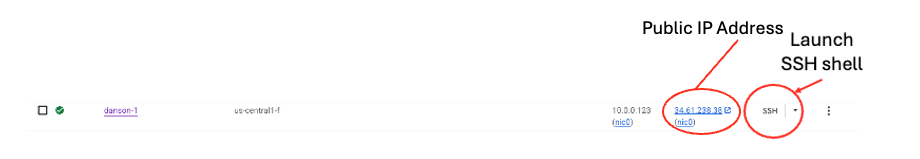

After the instance starts, select SSH next to the VM in the instance list to open a browser-based terminal session.

Image Alt Text:Google Cloud Console VM instances page showing the running C4A instance with a green status checkmark and the SSH button highlighted in the Connect columnConnecting to a running C4A VM using SSH

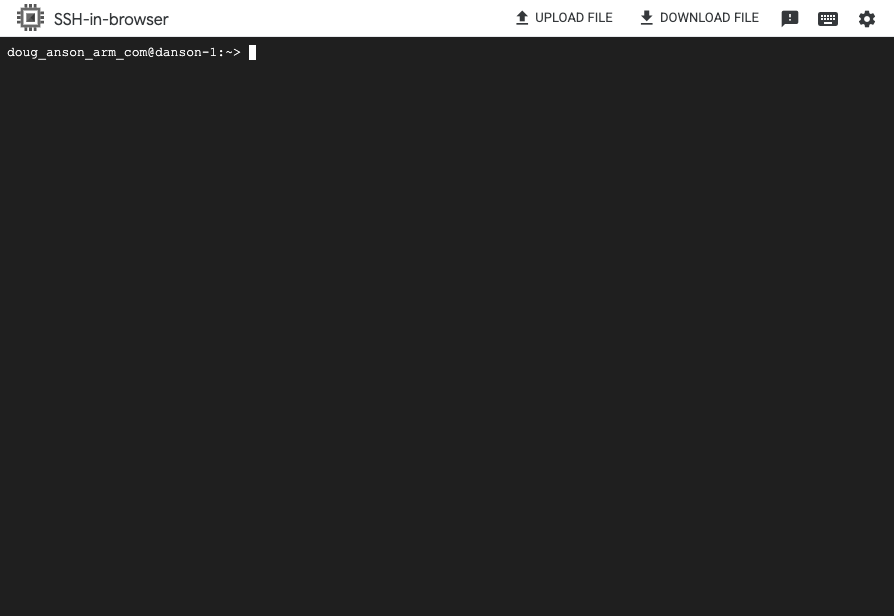

A new browser window opens with a terminal connected to your VM.

Image Alt Text:Browser-based SSH terminal window with black background showing Linux command prompt and Google Cloud branding at topTerminal session connected to the VM

What you’ve accomplished and what’s next

You’ve now provisioned a Google Axion C4A Arm VM and connected to it using SSH. You’ll use this VM to run your OpenCV application.

Next, you’ll install OpenCV and the required dependencies on your VM.
