Create an Arm-based virtual machine using Microsoft Cobalt 100

Create an Arm-based Azure virtual machine using Cobalt 100

You can create an Arm-based Cobalt 100 virtual machine using the Microsoft Azure console, the Azure CLI tool, or Infrastructure as Code (IaC). For this Learning Path, you use the Azure console to create a virtual machine with an Arm-based Cobalt 100 processor.

You’ll focus on the general-purpose virtual machine of the D series. For more details, see Dpsv6 size series in the Microsoft Azure documentation.

If you haven’t used Microsoft Azure before, see Create a Linux virtual machine in the Azure portal .

Create an Arm-based Azure virtual machine

To create an Azure virtual machine based on Cobalt 100, launch the Azure portal and navigate to Virtual Machines.

• Select Create, and click on Virtual Machine from the drop-down list.
• In the Basic tab, fill in the instance details such as Virtual machine name and Region.
• Choose the image for your virtual machine (for example, Ubuntu 24.04 LTS) and select Arm64 as the VM architecture.

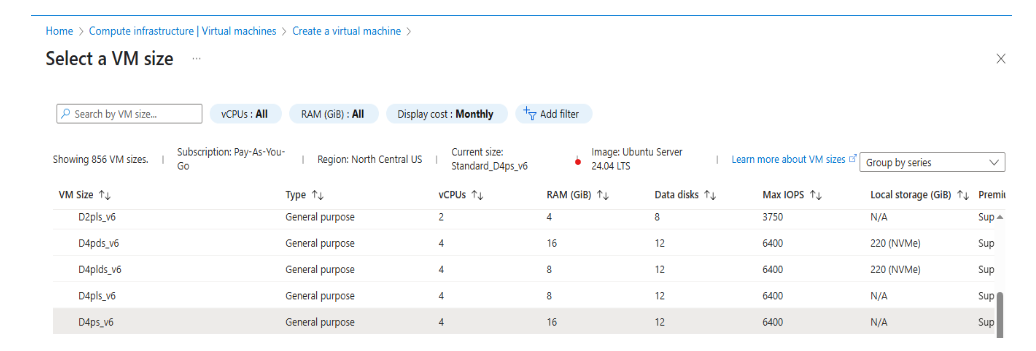

• In the Size field, select See all sizes and select the D-Series v6 family of virtual machines. Select D4ps_v6 from the list.

Select the D-Series v6 family of virtual machines

• Select SSH public key as an authentication type. Azure automatically generates an SSH key pair for you and allows you to store it for future use.
• Fill in the administrator username for your virtual machine.
• Select Generate new key pair, and select RSA SSH Format as the SSH key type. RSA offers better security with keys longer than 3072 bits. Give a key pair name to your SSH key.

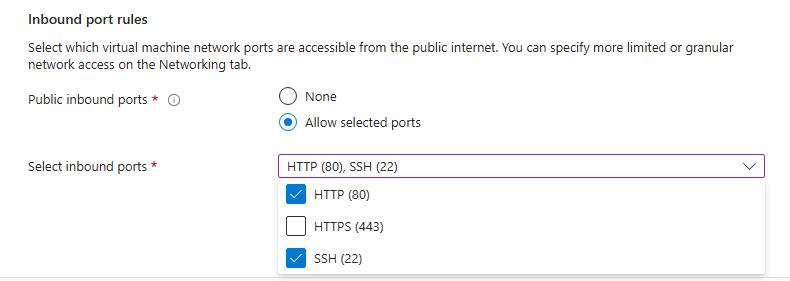

• In Inbound port rules, select HTTP (80) and SSH (22) as the inbound ports.

Allow inbound port rules

Select the Review + Create tab and review the configuration for your virtual machine.

Review and Create an Azure Cobalt 100 Arm64 VM

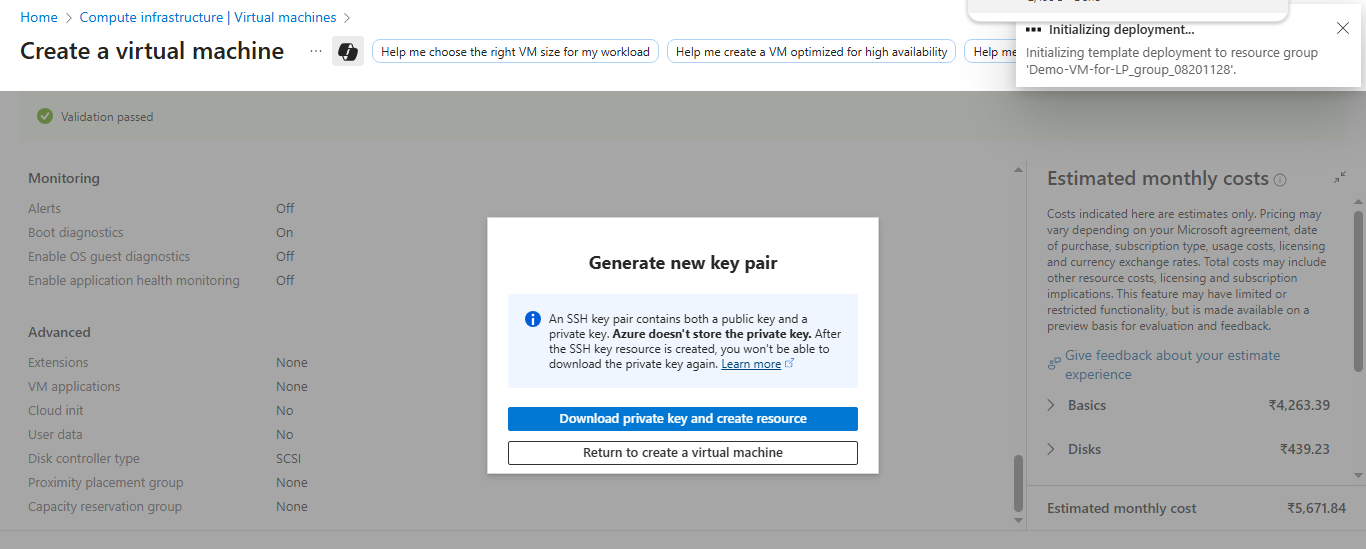

When you’re confident about your selection, select the Create button, and select the Download Private key and Create Resources button.

Download Private key and Create Resources

Your virtual machine is ready and running in a few minutes. Press Go to Resource to view the new virtual machine details. You can SSH into the virtual machine using the private key and the public IP address.

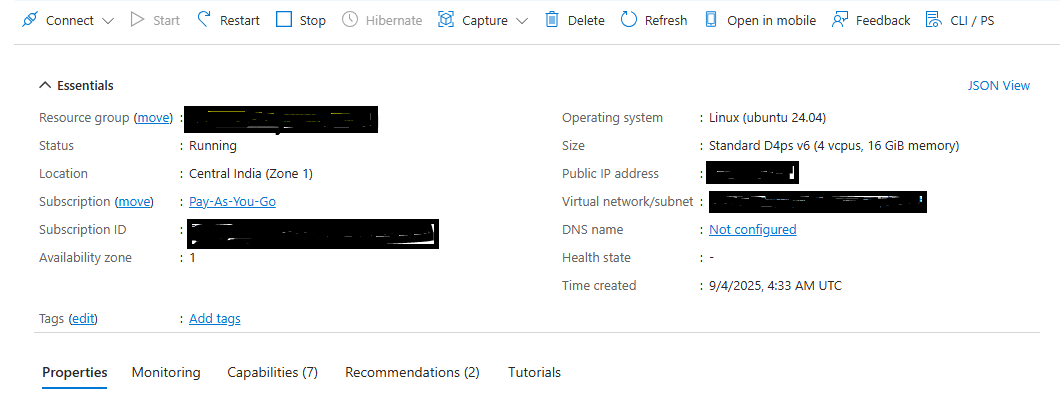

VM deployment confirmation in Azure portal
