Create a Firewall Rule on GCP

Overview

In this section, you will create a firewall rule in the Google Cloud Console to allow inbound TCP traffic on port 8123.

Create a Firewall Rule in GCP

To expose the TCP port 8123, create a firewall rule.

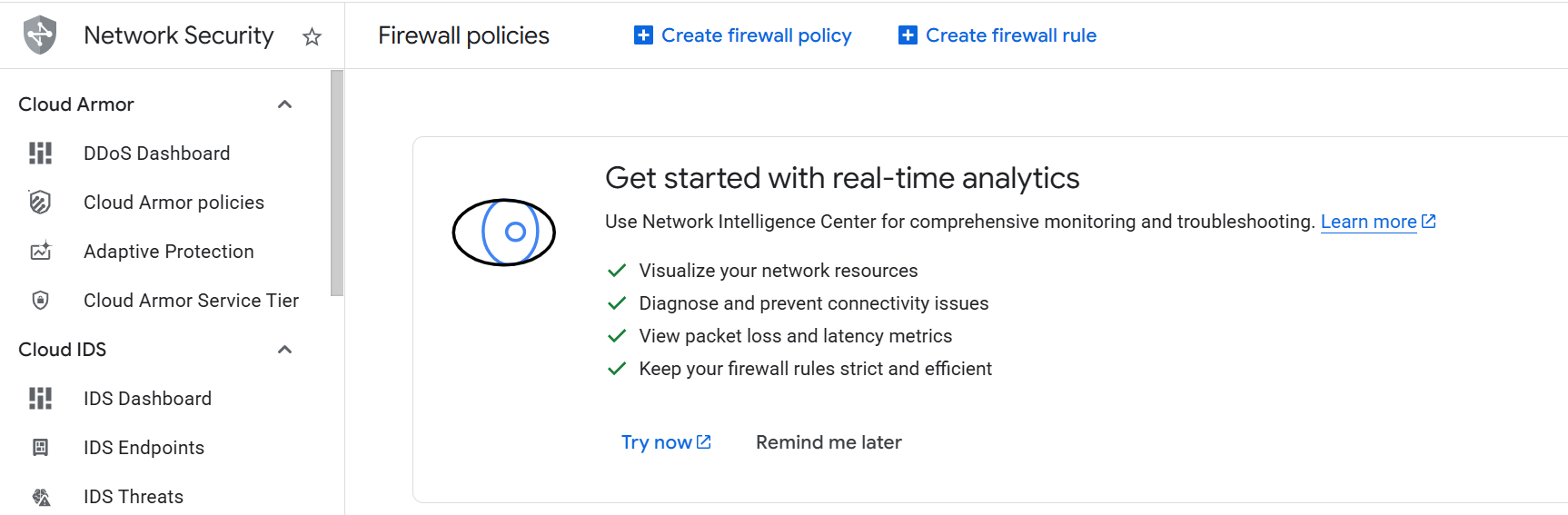

Navigate to the Google Cloud Console , go to VPC Network > Firewall, and select Create firewall rule.

Create a firewall rule

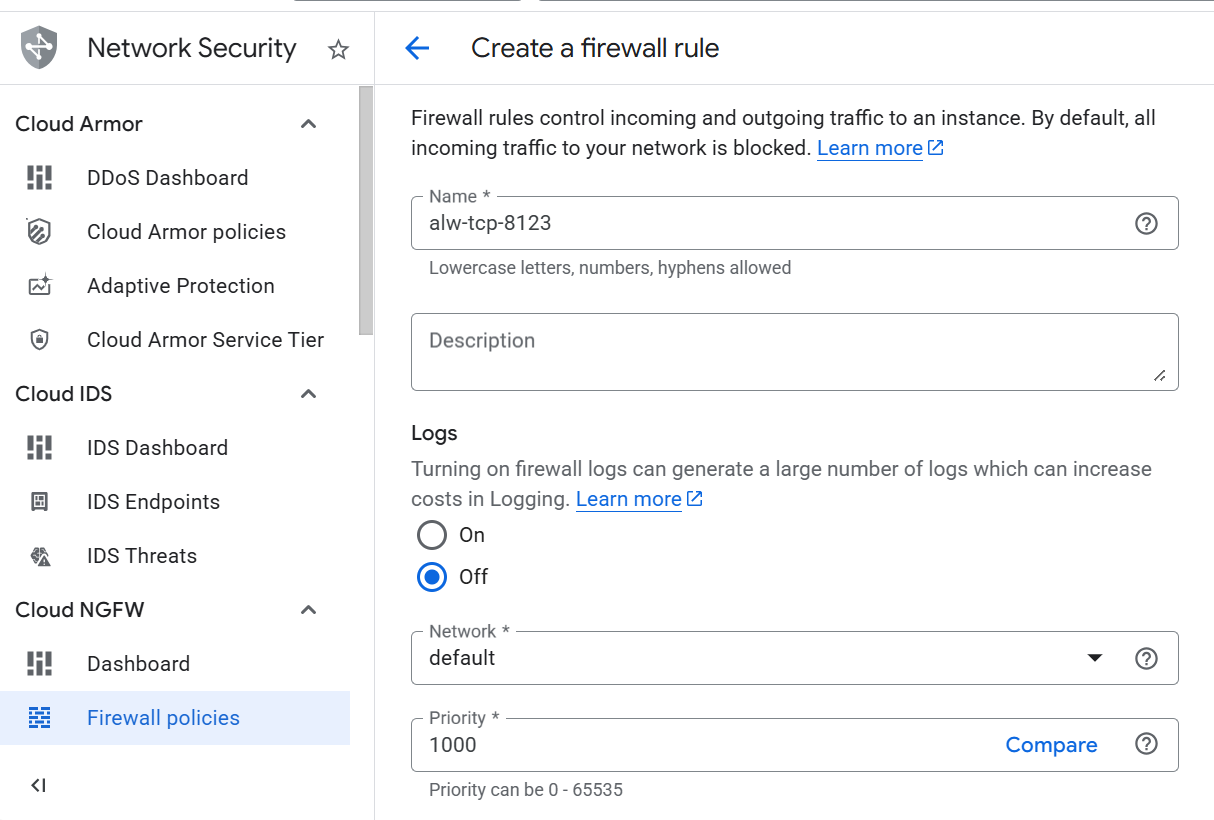

Set the Name of the new rule to “allow-tcp-8123”. Select your network that you intend to bind to your VM (default is “autoscaling-net”, but your organization might have others).

Creating the TCP/8123 firewall rule

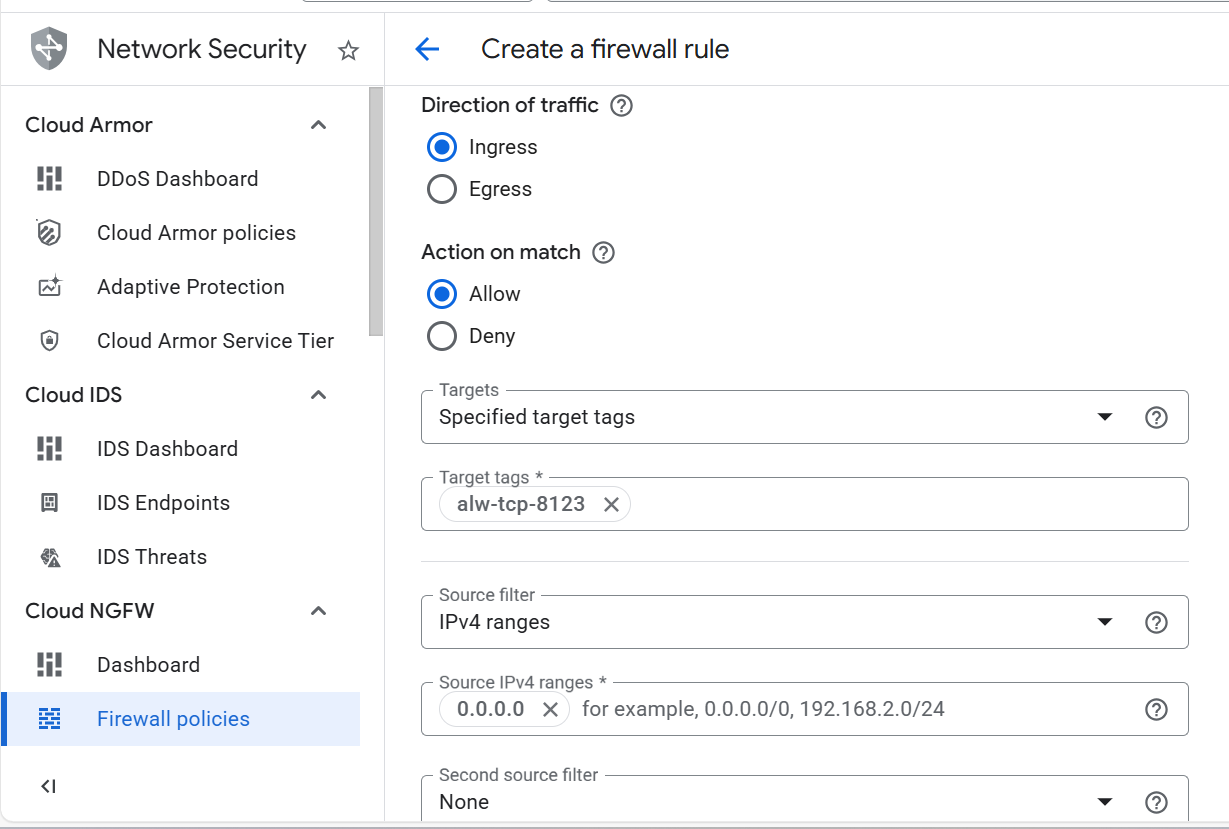

Next, Set Direction of traffic to “Ingress”. Set Allow on match to “Allow” and Targets to “Specified target tags”. Set Source IPv4 ranges to “0.0.0.0/0”.

Creating the TCP/8123 firewall rule

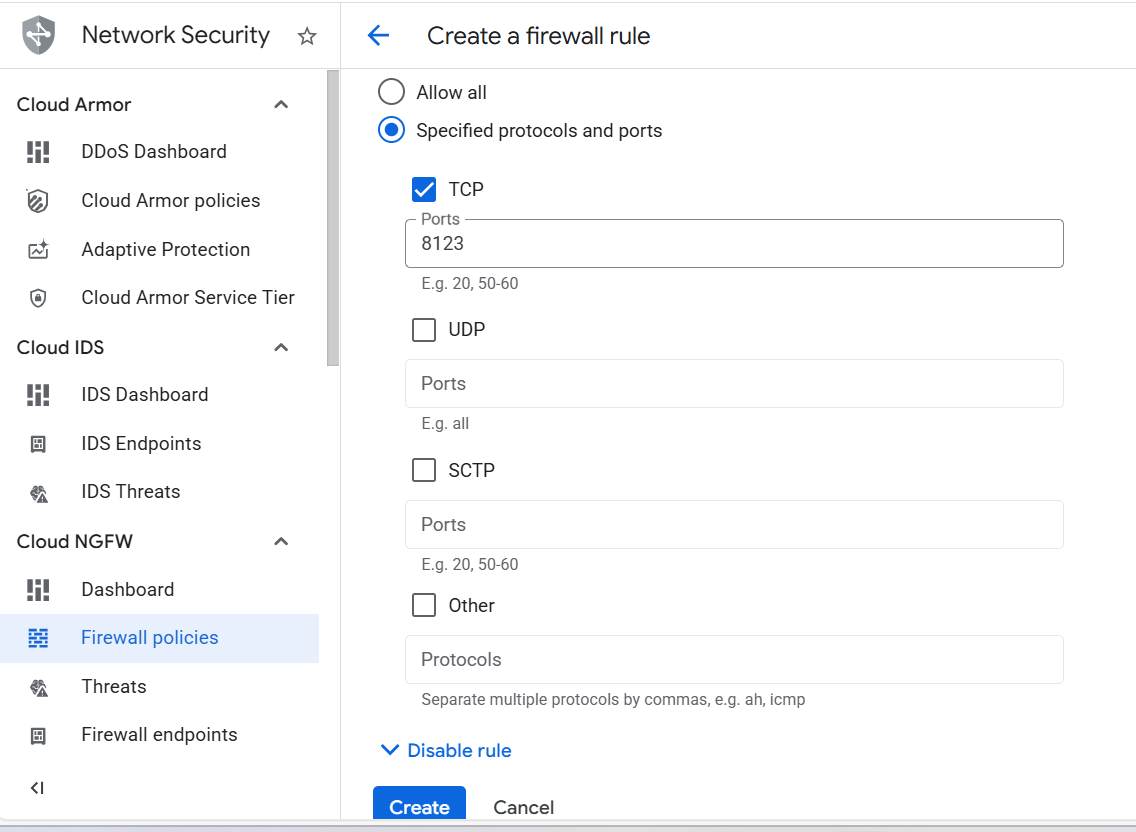

Finally, select Specified protocols and ports under the Protocols and ports section. Select the TCP checkbox, enter “8123” in the Ports text field, and select Create.

Specifying the TCP port to expose

The network firewall rule is now created, and you can continue with the VM creation.
