Analyze and adjust NFRU frame pacing

NFRU frame pacing

NFRU increases the presentation cadence by generating an intermediate frame between valid consecutive rendered frames. When the base render rate and presentation pacing are stable, the display can receive frames more often without requiring the engine to render each one.

The sustainable uplift depends on both the interpolation workload and when the real and generated frames are submitted and shown. This makes frame pacing an important part of realizing the smoothness benefit.

When profiling NFRU frame pacing, observe render FPS and present FPS. Check whether idle gaps are caused by pacing waits or by actual GPU workload limits.

The NFRU pace adjuster converts available GPU and neural processing budget into a stable target by moving between sustainable FPS levels instead of chasing an unstable peak. This conversion helps NFRU deliver smoother and more consistent gameplay.

Evaluate render FPS versus present FPS

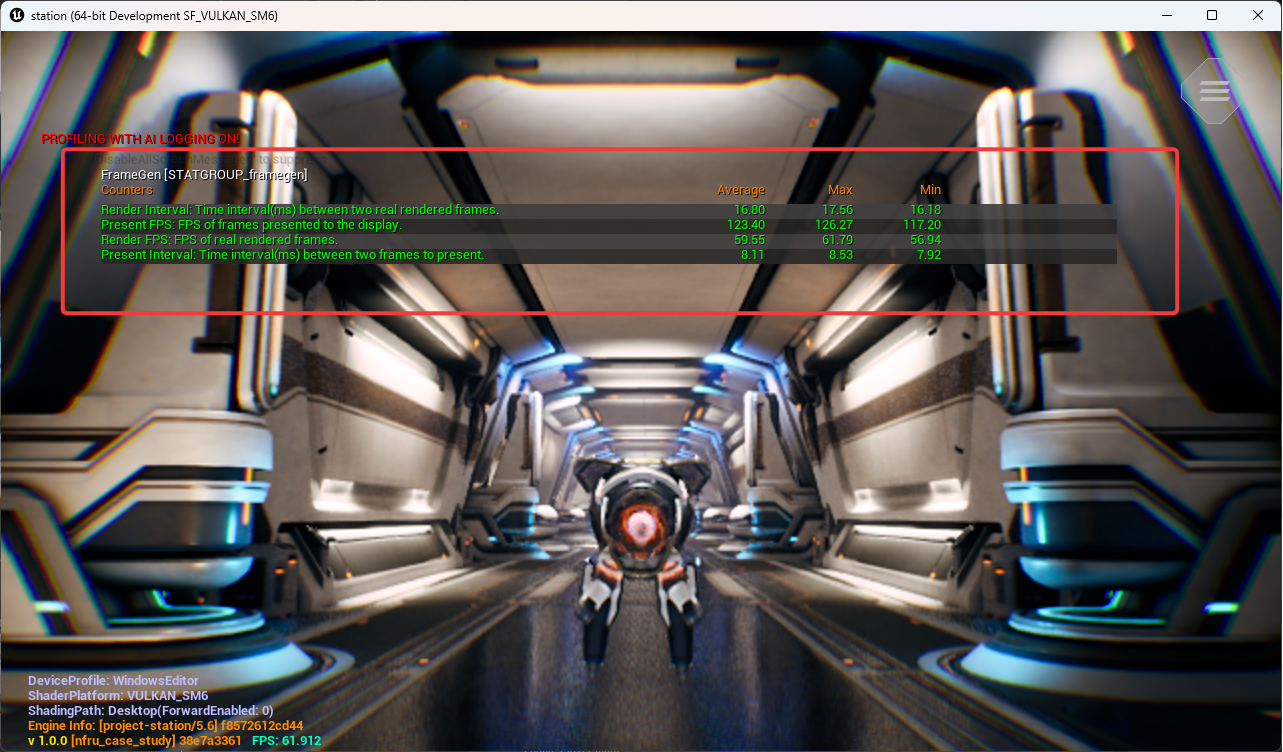

To monitor NFRU performance in real-time, use the console command:





stat framegen



This command displays four key counters that provide insights into NFRU operation:

There are two FPS values to distinguish:

Consider the following example values:





Render FPS       = 30 FPS
Render interval  = 33.3 ms

Present FPS      = 60 FPS
Present interval = 16.6 ms



With one generated frame between two real frames, the display can receive frames twice as often.

Render timeline:





R0 ---------------- R1
       33.3 ms



Present timeline:





R0 -------- G0 -------- R1
   16.6 ms    16.6 ms



So when NFRU is generating and presenting each intermediate frame, render FPS might stay the same, while present FPS increases.

Why frame pacing is needed

Frame pacing controls when frames are submitted or presented. High FPS alone does not guarantee smoothness. If frames arrive unevenly, the result can still feel stuttery.

Bad pacing:





P0 -- P1 -------- P2 - P3 ---------- P4



Good pacing:





P0 ---- P1 ---- P2 ---- P3 ---- P4



Frame pacing behavior and GPU idle time

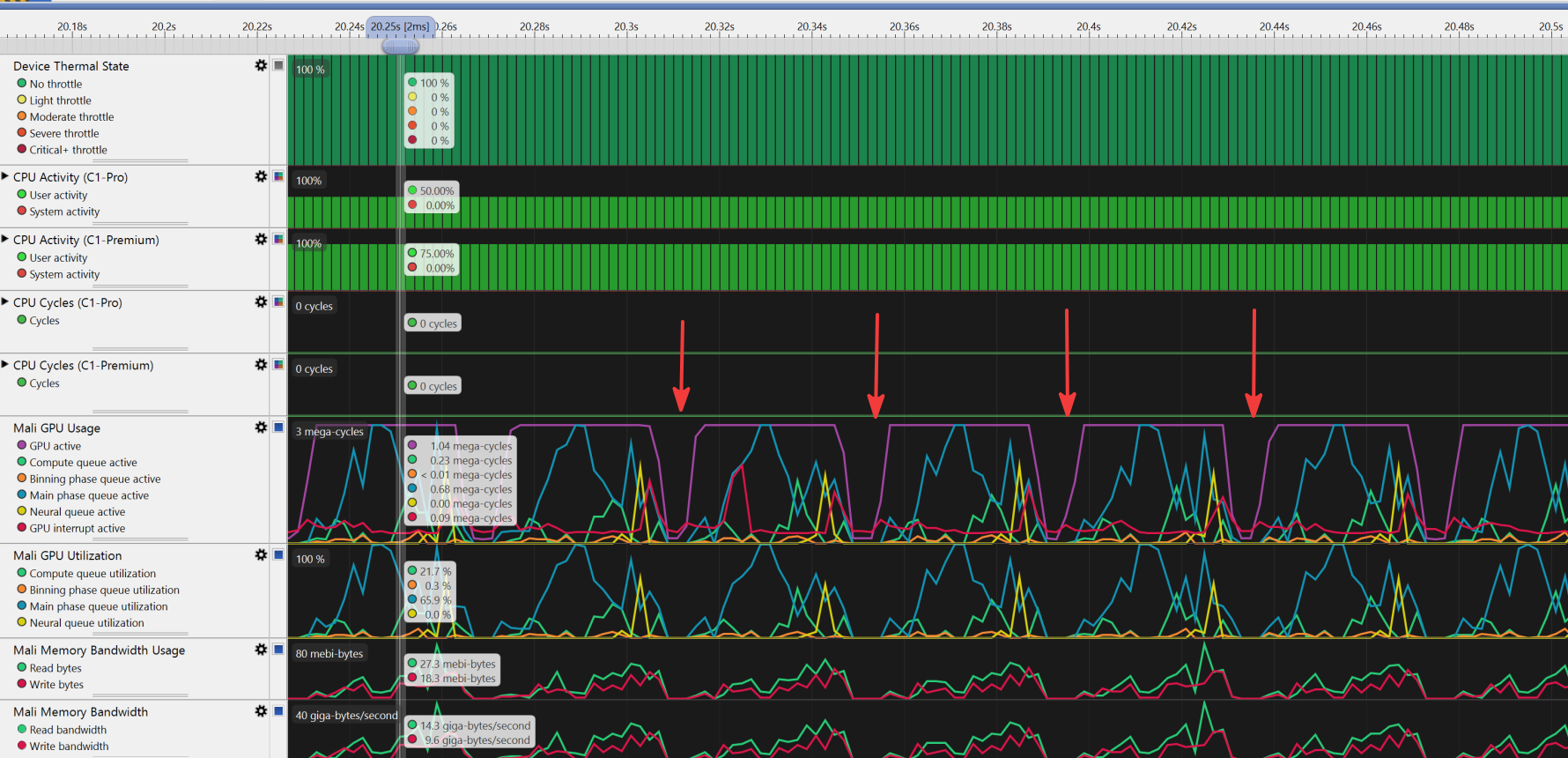

In Streamline captures, frame-pacing waits often appear as gaps between GPU workloads. These gaps can happen when real rendered frames are produced unevenly. The pacing system waits before submitting or presenting the next real or generated frame to keep the output aligned with the target cadence.

During that wait, the GPU might be idle:

These idle gaps are important to identify because they can indicate that presentation timing, rather than pure render cost, is limiting the observed FPS uplift:

• GPU idle time: The GPU has no queued work while the pacing system waits for the next frame timing slot.
• Lower measured throughput: Present FPS might be limited by pacing or display timing even when the GPU has spare capacity.
• Uneven workload distribution: Bursts of rendering work followed by idle gaps can make frame delivery harder to interpret in profiling captures.
• Power behavior changes: Idle periods might reduce instantaneous GPU activity, while bursts can still create short load spikes.

Proper frame pacing keeps presentation intervals stable, but it can intentionally introduce waiting. For profiling, distinguish between idle time caused by pacing and idle time caused by missing render work or synchronization problems.

This is especially important for NFRU because the output alternates between real and generated frames:





R0 ---- G0 ---- R1 ---- G1 ---- R2



If these frames aren’t presented at regular intervals, the motion might look uneven even though more frames are being produced.

Remove common pacing limits for profiling

When you want to measure the maximum present FPS that NFRU can reach, disable the pacing systems that might cap or smooth presentation timing. Use this setup for profiling and investigation only. For normal gameplay testing, frame pacing is still important because it keeps presentation intervals stable and reduces visible stutter.

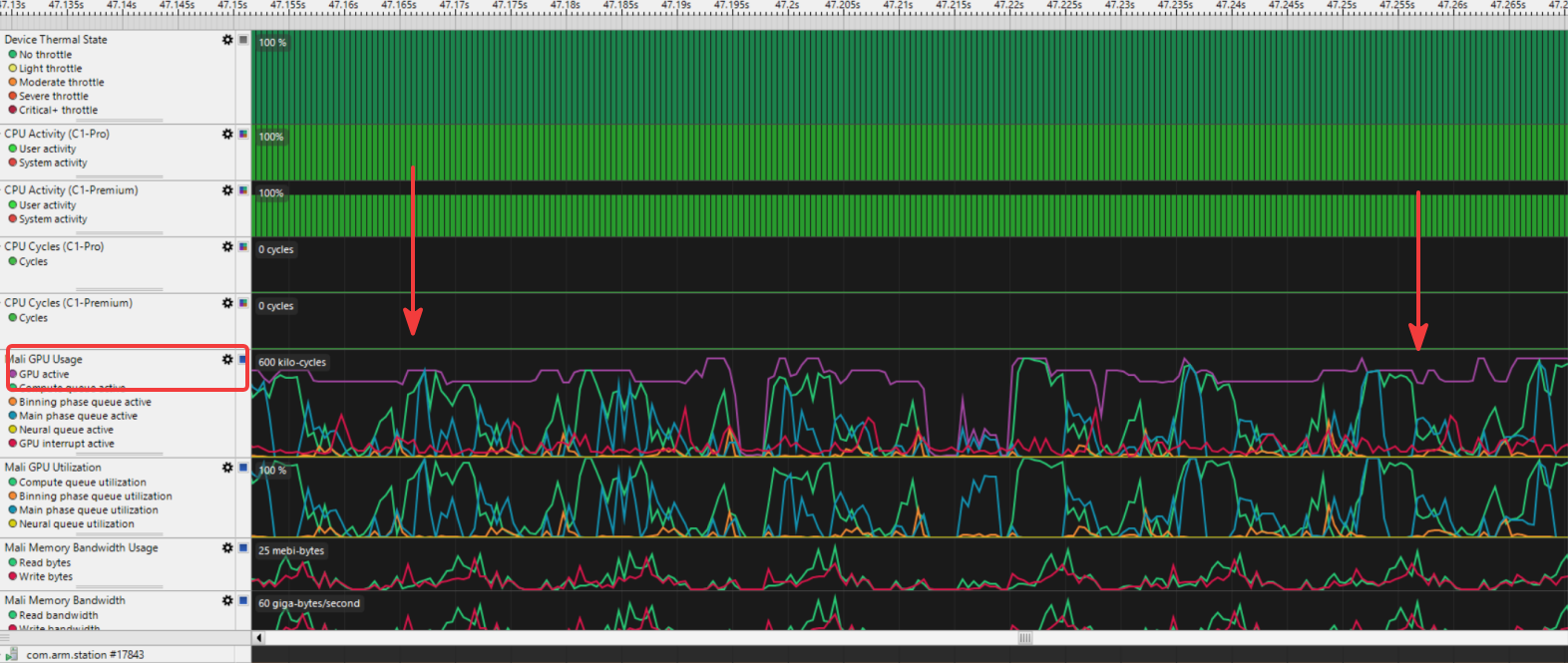

The capture shows a frame-pacing issue where a large idle gap appears before the next submitted frame. Removing pacing caps can help you check whether the workload can produce higher present FPS when the platform isn’t intentionally delaying presentation.

Frame-pacing gap before the next submitted frame

To remove common software pacing limits for profiling, run the following console commands:





r.NFRU.PaceAdjuster 0
a.UseSwappyForFramePacing 0
r.VSync 0
t.MaxFPS 0
r.SetFramePace 0



Some commands are platform-specific, and the display refresh rate or compositor might still cap the final present FPS.

These commands change the pacing behavior as follows:

• r.NFRU.PaceAdjuster 0 disables the NFRU adaptive pace adjuster.
• a.UseSwappyForFramePacing 0 disables Android Swappy pacing when Swappy is available.
• r.VSync 0 disables VSync.
• t.MaxFPS 0 removes the Unreal max FPS cap.
• r.SetFramePace 0 attempts to clear platform frame pacing.

After applying these settings, observe render FPS and present FPS again. If present FPS increases, one of the pacing systems was limiting presentation. If present FPS remains unchanged, the limit is more likely caused by render cost, NFRU processing cost, display refresh behavior, or another platform constraint.

Understand the achievable FPS uplift

A common target is:





60 render FPS + NFRU = 120 present FPS



A workload with a lower base render rate can still increase its presentation rate:





45 render FPS + NFRU = 90 present FPS



The displayed result can also be capped by the display:





45 render FPS + NFRU = 90 possible present FPS
60 Hz display cap     = 60 actual present FPS



This can happen because NFRU output is still constrained by:

• Display refresh rate
• VSync
• Hardware or platform frame pacing
• Swappy pacing on Android
• NFRU processing cost
• The selected custom frame pace target

NFRU also has its own GPU cost, including optical flow, frame interpolation, resource copies, and presentation handling. Therefore, the actual uplift reflects the complete workload rather than a fixed 2x guarantee. Even when the theoretical maximum isn’t reached, generated intermediate frames can still provide a noticeable improvement in presentation smoothness.

How the NFRU pace adjuster works

The NFRU pace adjuster is an optional adaptive frame pacing controller provided by the ArmNG Unreal plugin. It runs on the NFRU custom-present path of the plugin and chooses a sustainable presentation FPS target while NFRU is running.

The pace adjuster doesn’t make Unreal render more real frames, and it doesn’t change interpolation quality. Instead, it adjusts the frame pace target so real and generated frames are presented at a rate the current workload can sustain.

When enabled, the NFRU custom presenter monitors frame timing during presentation. If frames consistently finish with enough spare time, the adjuster raises the target to the next available FPS level. If frames are late, it lowers the target to the previous FPS level. The selected target is applied through r.SetFramePace.

Enable it with:





r.NFRU.PaceAdjuster 1







Renderer + NFRU
      |
      v
Custom presenter measures frame timing
      |
      v
Enough spare time? -> raise FPS target
Late frames?       -> lower FPS target
      |
      v
Apply:
r.SetFramePace <CustomFPS>



The goal is to find a stable FPS target instead of always aiming for the highest possible value.

FPS adjustment settings

The pace adjuster moves between stable FPS levels derived from the platform frame pace, such as 30 -> 40 -> 60 -> 120. It changes only one level at a time to avoid sudden jumps. If several frames have enough spare time, it raises the target to the next FPS level. If several frames are late, it lowers the target to the previous FPS level.

r.NFRU.UpAdjustFrameCount controls how many consecutive good frames are required before increasing the target FPS. Its default value is 40, which makes the adjuster cautious before moving up.

r.NFRU.DownAdjustFrameCount controls how many consecutive late frames are required before decreasing the target FPS. Its default value is 20, so the adjuster reacts faster when the current target can’t be sustained. In practice, this means NFRU increases FPS slowly for stability and decreases FPS faster to reduce visible stutter.

You can tune these two values to fit your content and target device. Lower values make the pace adjuster react faster to changing workload conditions. However, it can also cause more frequent FPS target changes.

Higher values make the adjuster more stable. However, it might take longer to move up when headroom is available or move down when the selected target becomes too expensive.

What you’ve accomplished

You’ve now analyzed NFRU performance by comparing render FPS and present FPS. You’ve also learned about the NFRU pace adjuster and how it works.

You’ve completed a case study workflow for NFRU with Project Moku.

NFRU is one of the most approachable entry points into neural graphics: the model and engine integration are provided, no new content-authoring pipeline is required, and you can evaluate the benefit quickly in representative gameplay. Project Moku shows how you can use neural-accelerated hardware to present smoother motion while retaining the measurement, debugging, and pacing controls needed to meet your quality bar.

Use this case study as a baseline, then bring that opportunity to your own Unreal Engine content. Start with a repeatable test scene. Then, capture runs with NFRU disabled and enabled, measure the smoothness and performance benefit, and inspect any localized differences that affect your quality target. Use Streamline to select a sustainable presentation rate for the workload.
