Use Amazon DynamoDB for your IoT applications running on Arm64

Before you begin

Before you begin, prepare the weather station emulator and connect it to AWS IoT Core by completing this Learning Path .

Create the rule

Start by creating the rule:

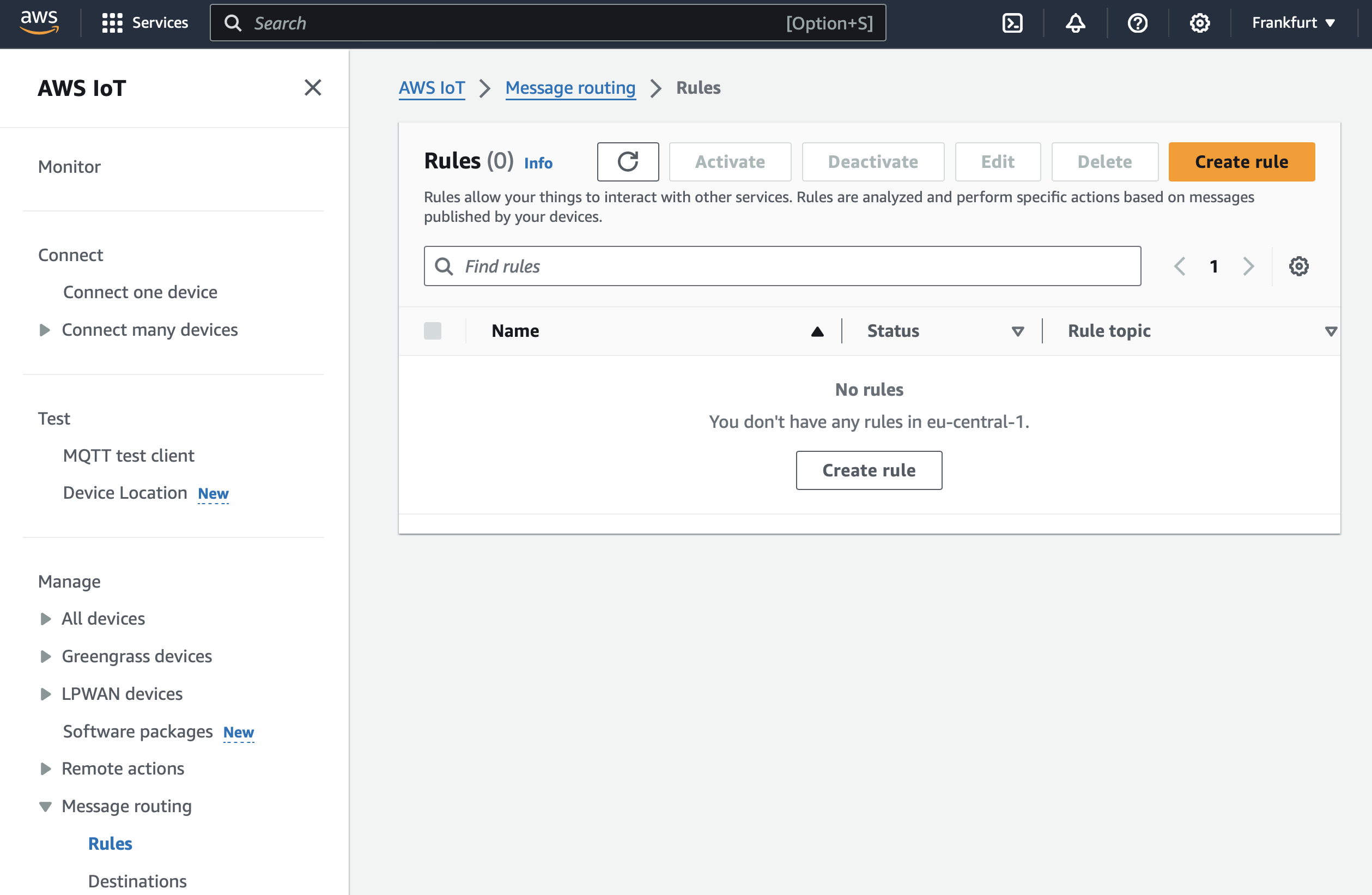

  1. Open AWS IoT Core, and look for Rules under Message routing:

Image Alt Text:fig1

  1. Click the Create rule button. This will opens Create rule view, in which you configure the rule:

Image Alt Text:fig2

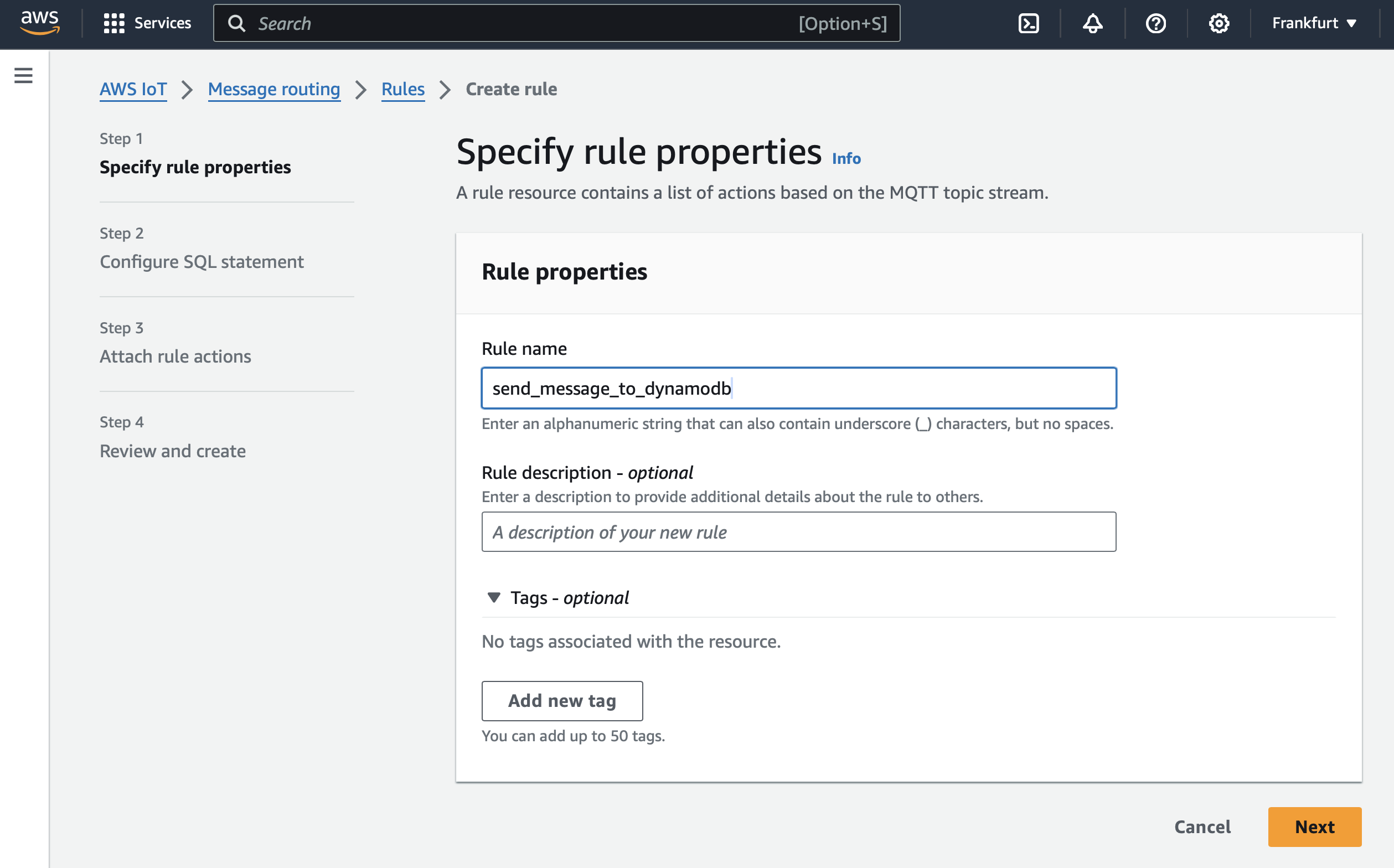

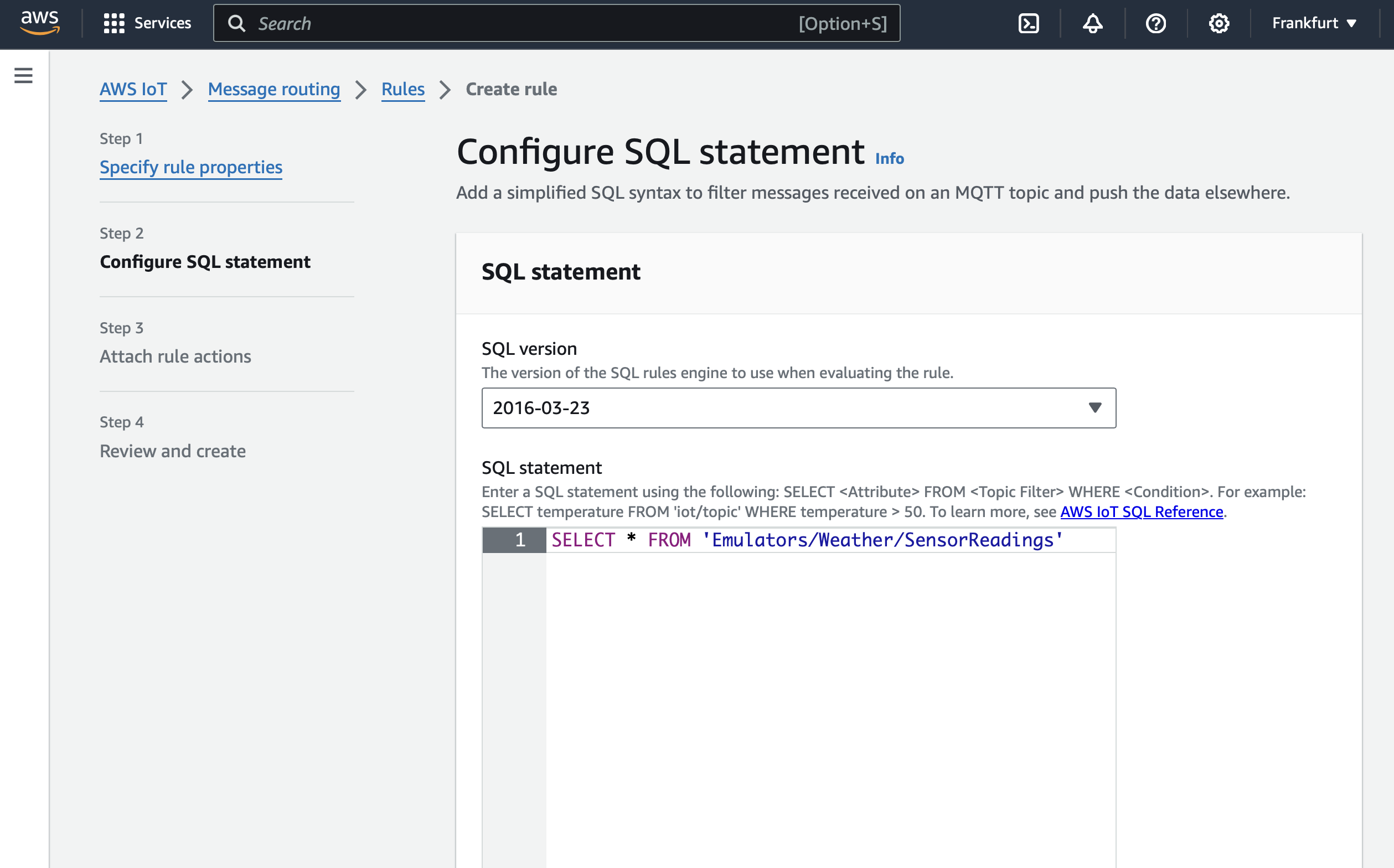

  1. Use the Create rule view to configure the rule as follows. Firstly, under the rule name, type: send_message_to_dynamodb. Then, click the Next button. This will take you to the Configure SQL statement, where you use the following SQL query:




            SELECT * FROM 'Emulators/Weather/SensorReadings'



Image Alt Text:fig3

  1. Click the Next button.

Image Alt Text:fig4

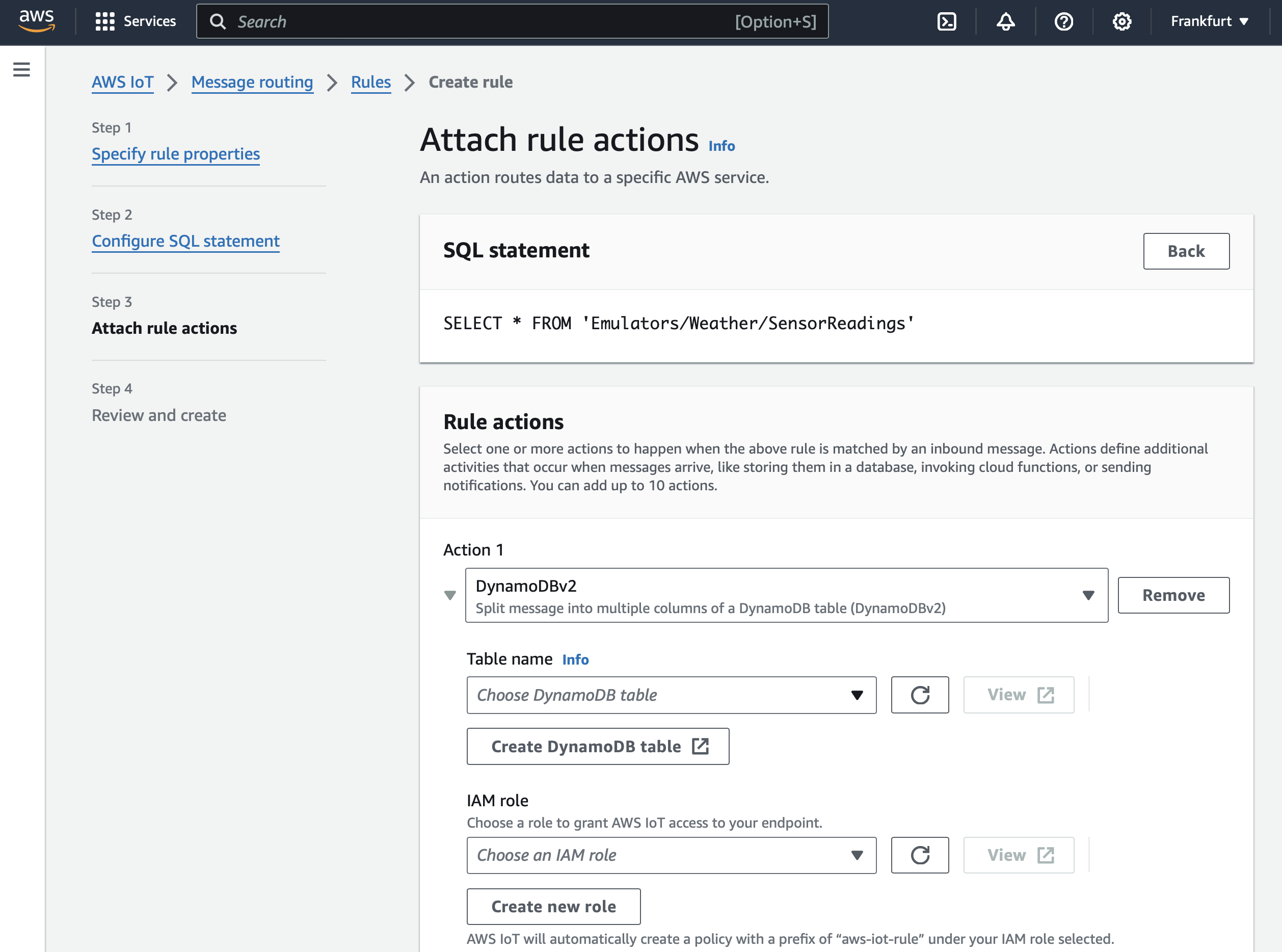

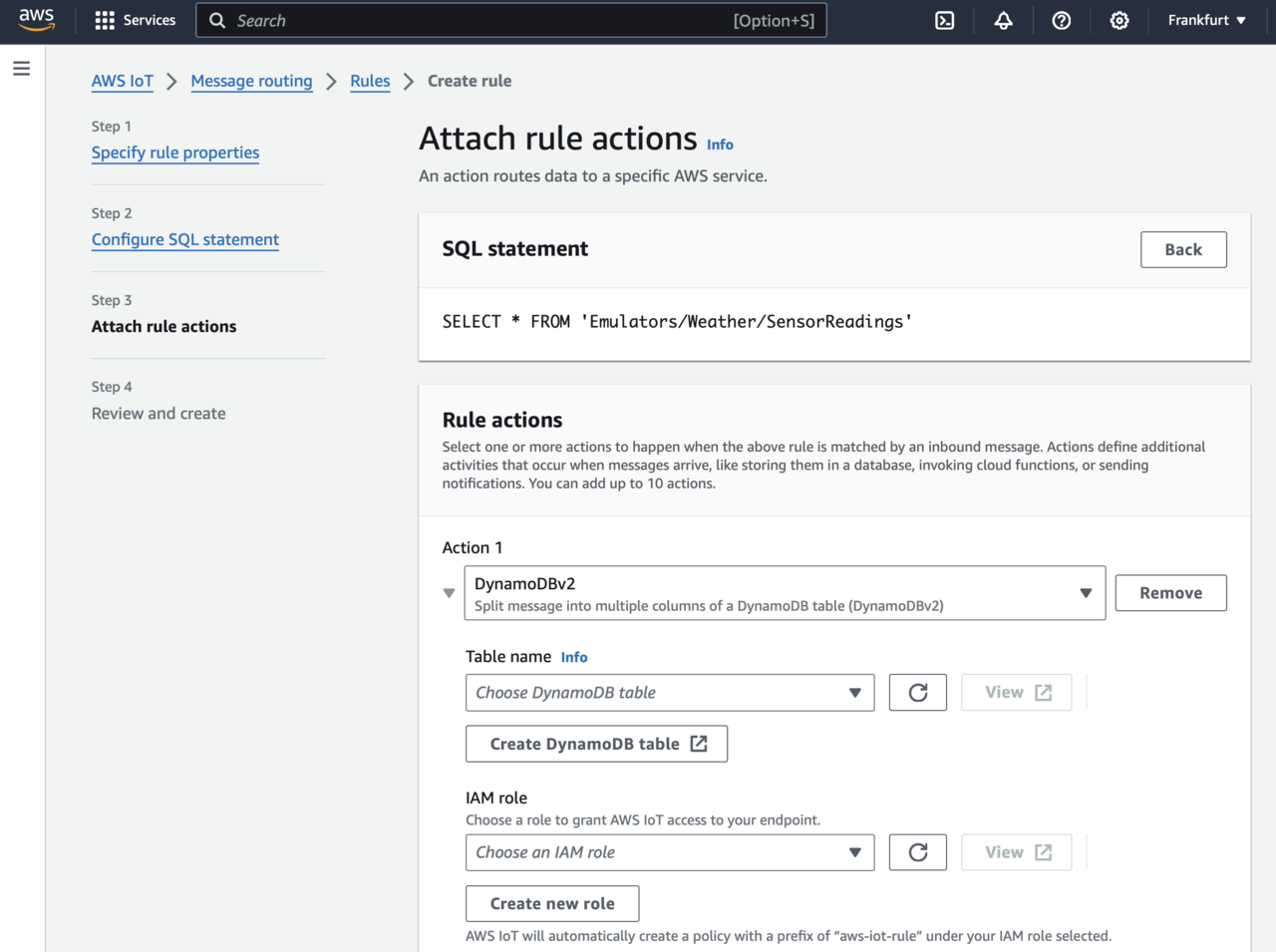

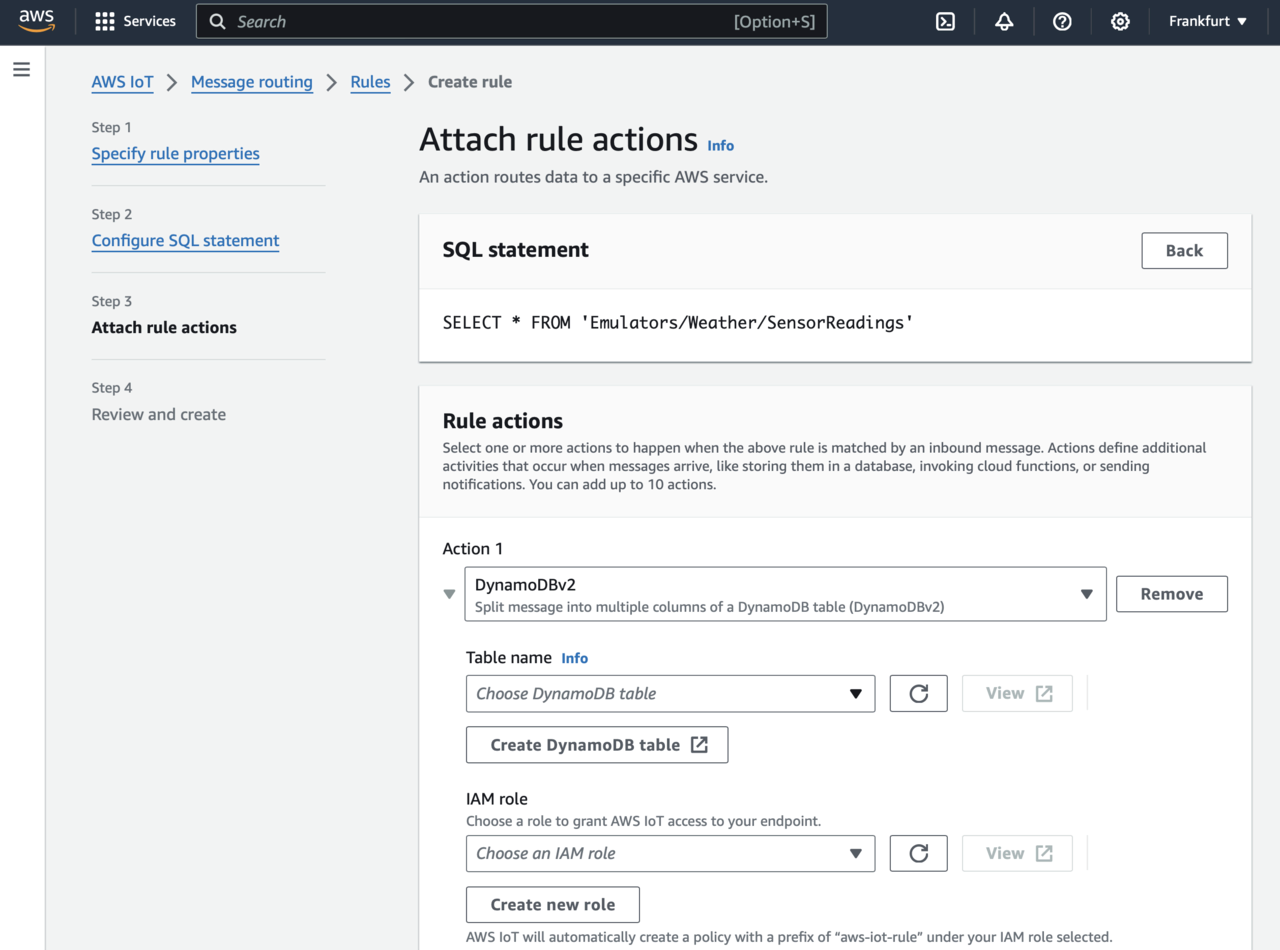

  1. This opens the Attach rule actions, where under Action 1, select DynamoDBv2. This activates additional controls (see figure below):

Image Alt Text:fig5

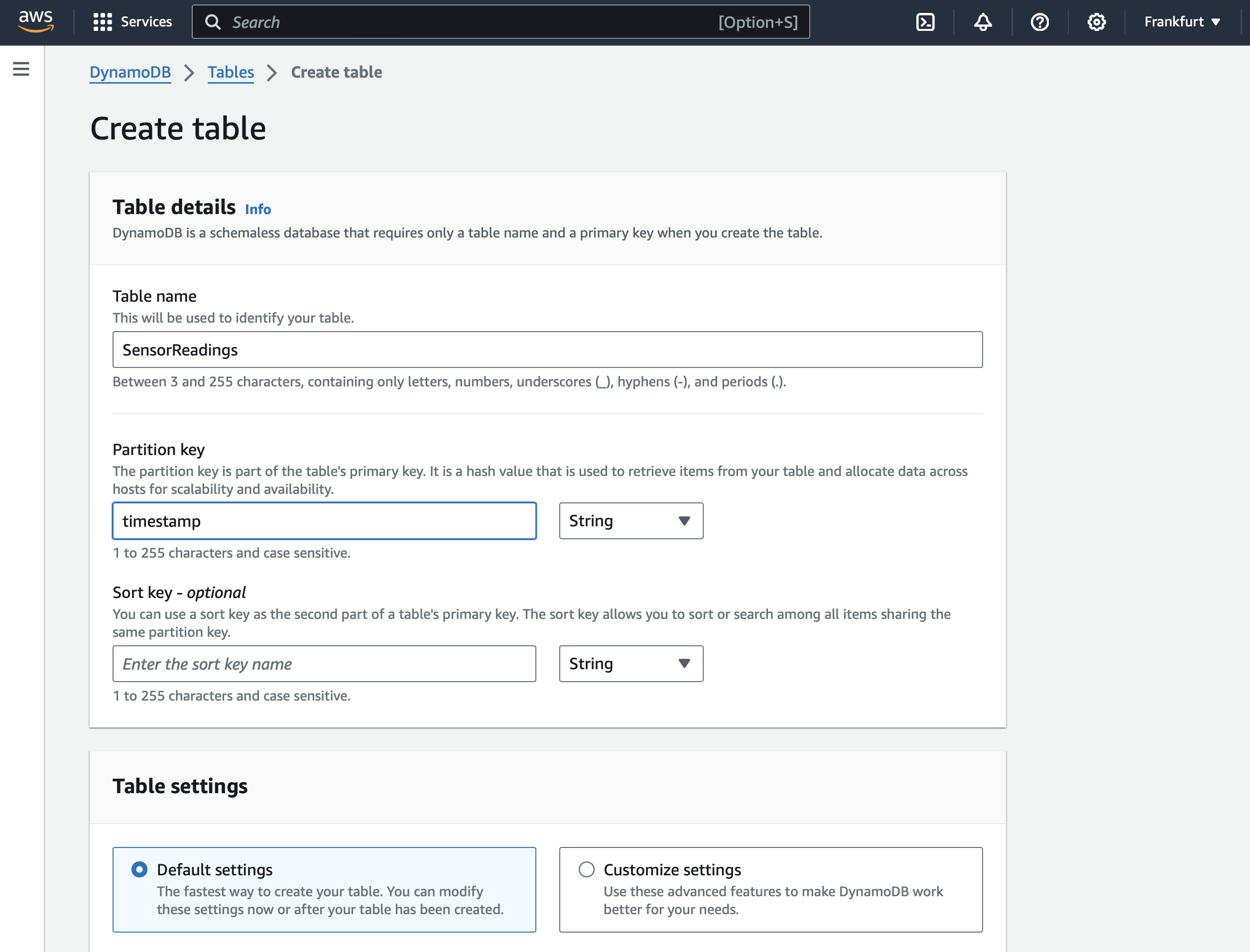

  1. Click the Create DynamoDB table. This will open another tab, where you type SensorReadings for the Table name and timestamp for the partition key. Ensure to check Default settings, scroll down, and click the Create table button. Wait a few moments for the table to be created. Then, return to the Create rule view.

Image Alt Text:fig6

  1. In the Create rule view, click the Refresh button next to the Choose DynamoDB table name drop-down. Then, select the SensorReadings table from that drop-down. Afterward, click the Create new role button (located below the IAM role). This activates the Create role pop-up.

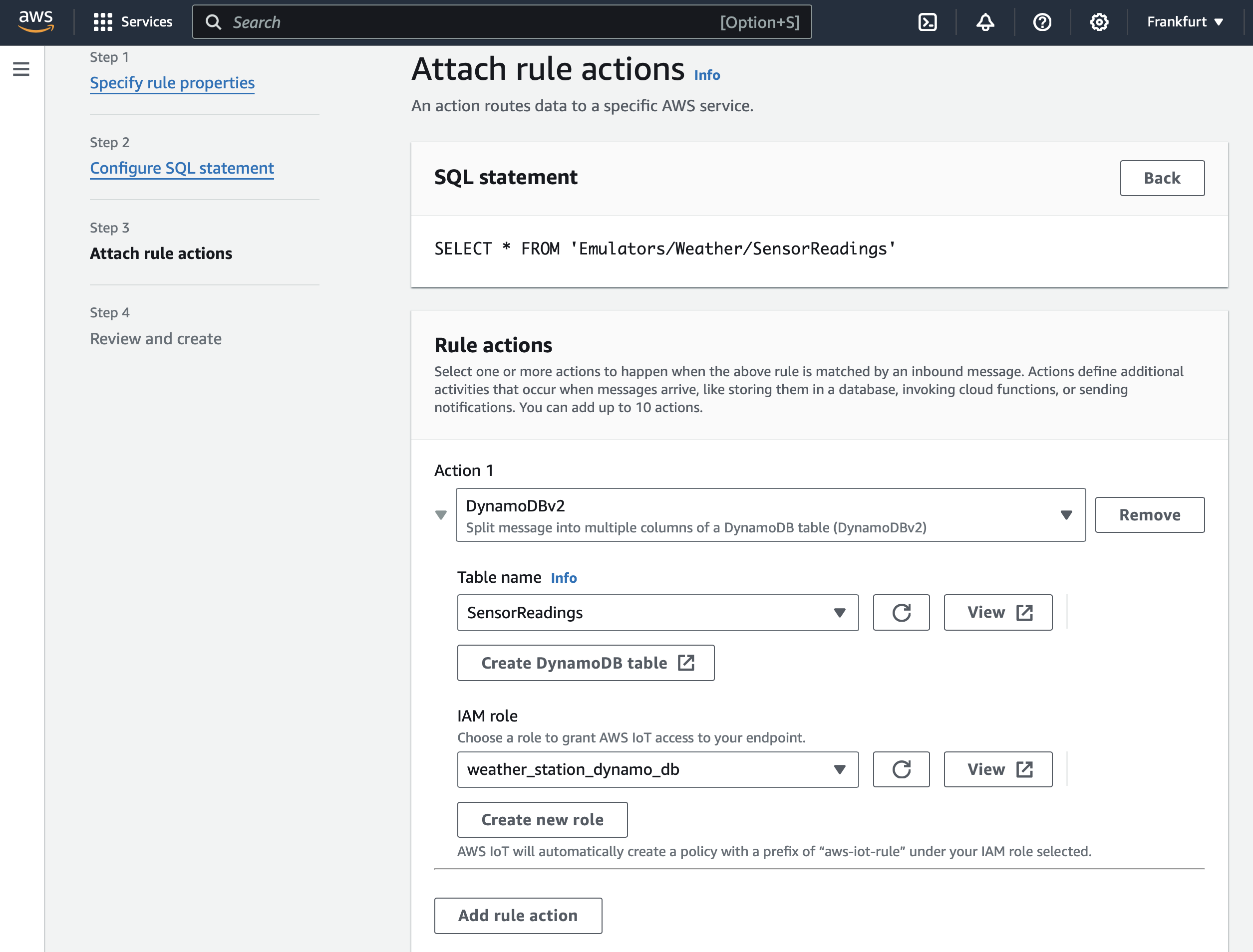

  2. In the Create role pop-up window, type ‘weather_station_dynamo_db’, and click the Create button. By now, the Attach rule actions screen looks like this:

Image Alt Text:fig7

  1. Scroll down and click the Next button. This displays the summary screen, where you click the Create button.

Test the rule

Now, everything is set up. The messages sent from the device are automatically inserted as new rows into the SensorReadings table. To check this, run the application from Create IoT applications with Windows on Arm and AWS IoT Core . Namely, open the command prompt, change the working directory to AWS.WeatherStation, and then type:





            npm start



This starts the emulator, which streams data to the AWS IoT Core. The output of the emulator looks like this:




        {"deviceId":"WeatherStationEmulator","timestamp":"2024-05-03T10:40:51.239Z","temperature":"22.35","humidity":"58","pressure":"1000.1"}
{"deviceId":"WeatherStationEmulator","timestamp":"2024-05-03T10:40:52.274Z","temperature":"27.59","humidity":"54","pressure":"1006.1"}
{"deviceId":"WeatherStationEmulator","timestamp":"2024-05-03T10:40:53.296Z","temperature":"38.77","humidity":"52","pressure":"1019.6"}
{"deviceId":"WeatherStationEmulator","timestamp":"2024-05-03T10:40:54.305Z","temperature":"32.57","humidity":"54","pressure":"1020.8"}
{"deviceId":"WeatherStationEmulator","timestamp":"2024-05-03T10:40:55.305Z","temperature":"30.86","humidity":"53","pressure":"1014.9"}

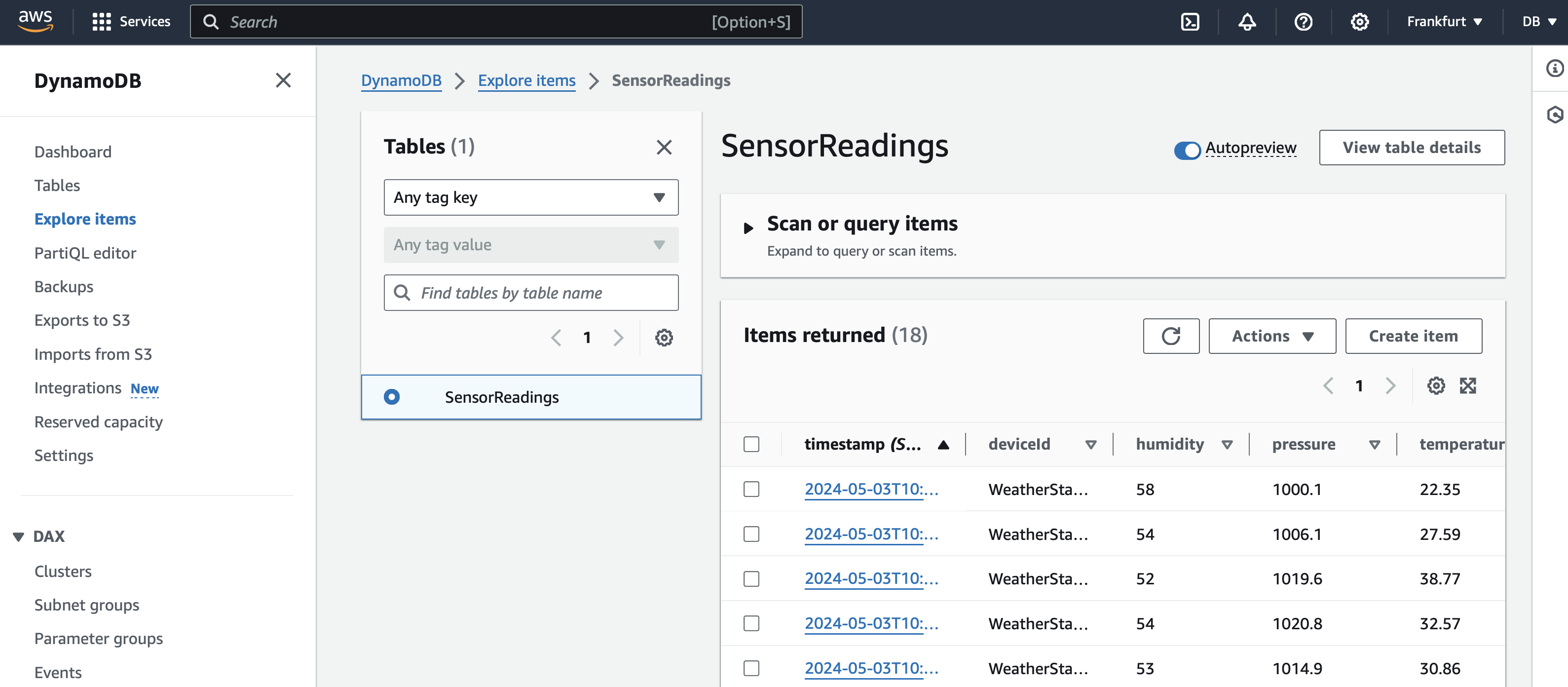

To ensure this data is written to the DynamoDB table, go to the AWS console, and in the search box type ‘DynamoDB’. Select DynamoDB from the list. This takes you to the DynamoDB dashboard, where you click Explore items on the left. Then, check the SensorReadings radio button, and you see the items in the table:

Image Alt Text:fig8

Note that the values in the table are the same as those generated by the emulator. This ensures that you have successfully integrated AWS IoT Core with DynamoDB.

Summary

In this learning path, you learned how to use the Rules Engine to write data from the weather station emulator to DynamoDB. This process involved creating a database in Amazon DynamoDB and using the Rules Engine to establish rules that automatically transfer the data to a DynamoDB table. Through these steps, you gained practical experience in managing real-time IoT data workflows and enhancing the scalability and responsiveness of IoT applications.
