Compile PuTTY natively on Windows on Arm with Clang

You can use Clang to build a CMake application for Windows on Arm. The example application is PuTTY, an open-source SSH and telnet client.

To compile PuTTY on a Windows on Arm device, follow the steps outlined below:

  1. Open Windows Powershell on your Windows on Arm computer.

Run the next two steps at the Powershell command prompt.

  1. Create a directory to use for the build and go to the directory:




            mkdir C:\putty
cd C:\putty


  1. Download the PuTTY source archive into your build directory and unzip it:




            wget https://the.earth.li/~sgtatham/putty/latest/putty-src.zip  -o putty-src.zip
Expand-Archive putty-src.zip


  1. Open the source code folder in Visual Studio

Start Microsoft Visual Studio.

Select the Open a Local folder option.

Browse and select the putty source directory C:\putty\putty-src which contains the CmakeLists.txt file.

Image Alt Text:putty_1

The Solution Explorer pane will appear on the right side of Visual Studio and will display the folder structure and files in the putty source directory.

Note

Don’t be alarmed when Visual Studio appears to start building. PuTTY uses the CMake build system and Visual Studio starts generating the CMake cache when the project is opened.

Wait for Visual Studio to complete processing for the default configuration, which is x64-Debug.

  1. Change the configuration to Arm

When Visual Studio processing is complete, you can change the configuration to build for Arm64 instead.

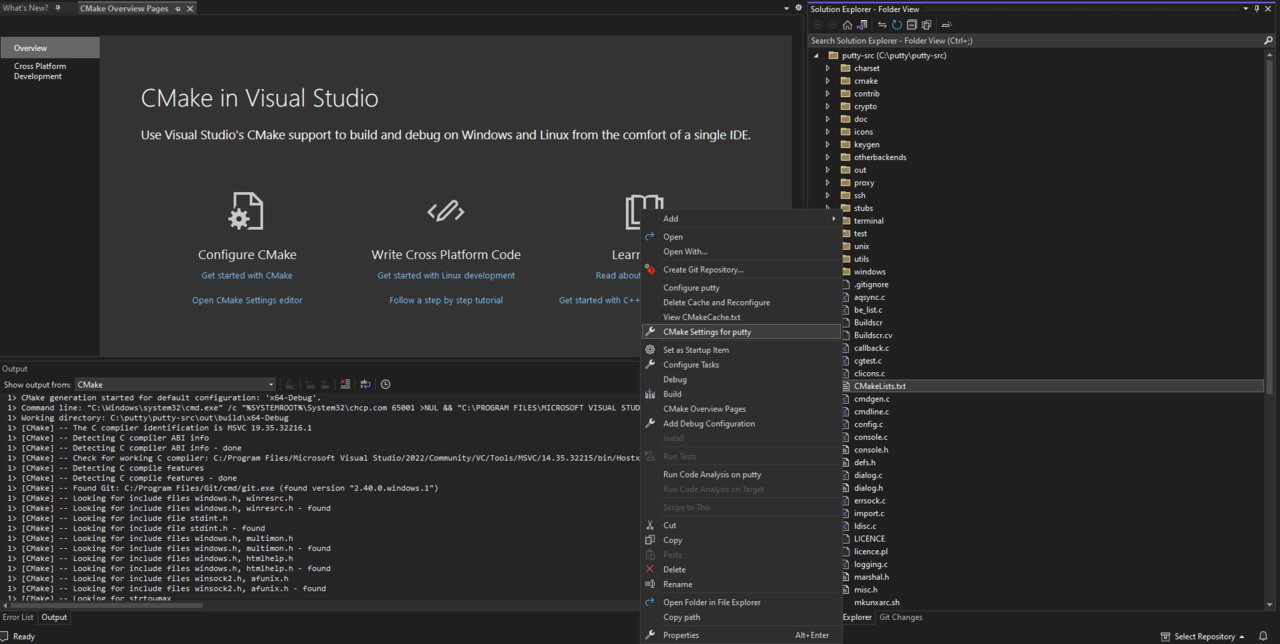

To change the configuration, right click on the CMakeLists.txt file in the Solution Explorer pane.

Select CMake settings for putty.

This opens up the CMake Settings dialog.

You can now add a new configuration to build PuTTY for Arm. This configuration uses the LLVM toolchain installed by the Visual Studio Installer.

Image Alt Text:putty_2

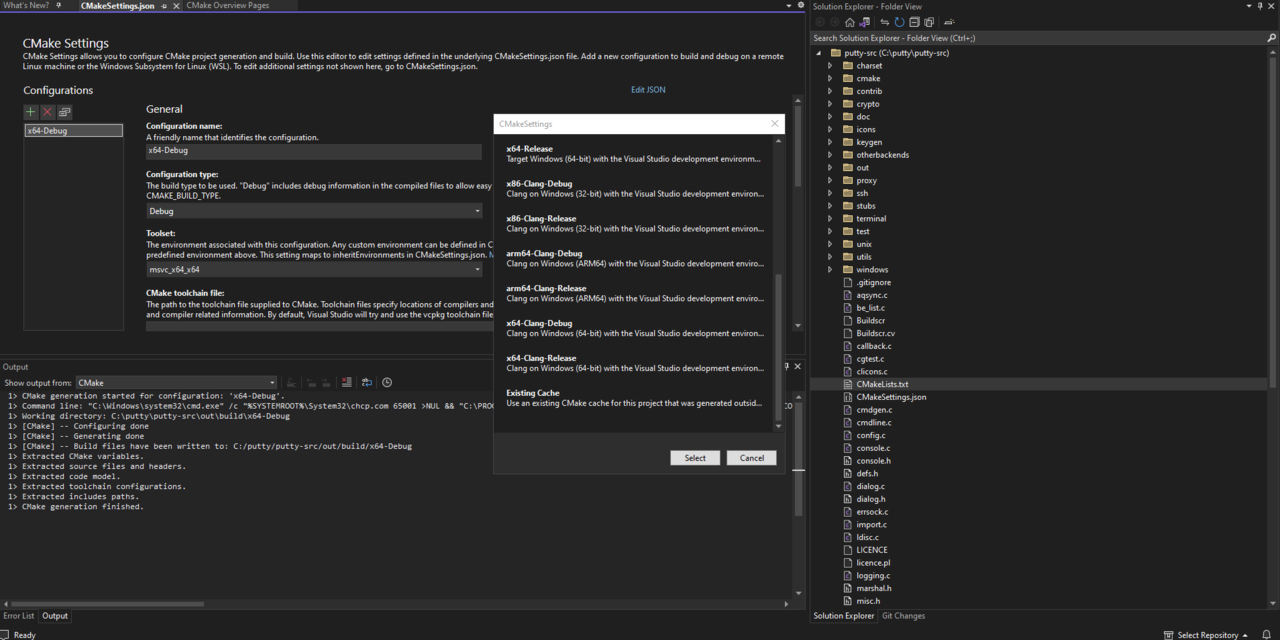

  1. Add a new configuration

In CMake Settings, click on + sign to Add a New Configuration and select arm64-Clang-Debug.

Image Alt Text:putty_3

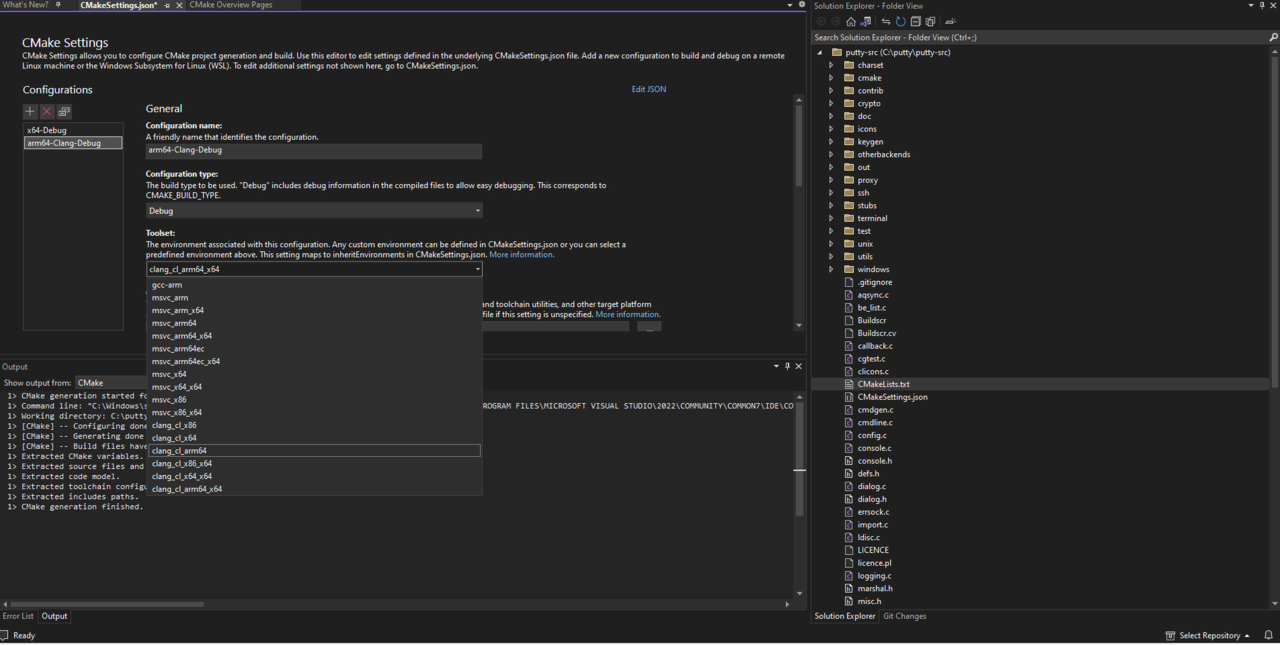

  1. Change the toolset

With the arm64-Clang-Debug configuration selected, change the Toolset from the drop-down menu to clang_cl_arm64.

Image Alt Text:putty_4

  1. Generate the CMake configuration

Scroll down and find CMake variables and Cache and click on Save and generate CMakeCache to load variables.

This will change the configuration on the top of Visual Studio to arm64-Clang-Debug

On the top toolbar open the drop down and click arm64-Clang-Debug. Then select Project -> Configure Cache. This will trigger Visual Studio to generate the CMakeCache.txt file for your new arm64-Clang-Debug configuration.

In the output window, you will see messages similar to:




        1> CMake generation started for configuration: 'arm64-Clang-Debug'.
1> Environment settings:
1>     CXXFLAGS=--target=arm64-pc-windows-msvc -fdiagnostics-absolute-paths
1>     CFLAGS=--target=arm64-pc-windows-msvc -fdiagnostics-absolute-paths
1> Command line: "C:\Windows\system32\cmd.exe" /c "%SYSTEMROOT%\System32\chcp.com 65001 >NUL && "C:\PROGRAM FILES\MICROSOFT VISUAL STUDIO\2022\COMMUNITY\COMMON7\IDE\COMMONEXTENSIONS\MICROSOFT\CMAKE\CMake\bin\cmake.exe"  -G "Ninja"  -DCMAKE_BUILD_TYPE:STRING="Debug" -DCMAKE_INSTALL_PREFIX:PATH="C:\putty\putty-src\out\install\arm64-Clang-Debug" -DCMAKE_C_COMPILER:FILEPATH="C:/PROGRAM FILES/MICROSOFT VISUAL STUDIO/2022/COMMUNITY/VC/Tools/Llvm/bin/clang-cl.exe"  -DCMAKE_MAKE_PROGRAM="C:\PROGRAM FILES\MICROSOFT VISUAL STUDIO\2022\COMMUNITY\COMMON7\IDE\COMMONEXTENSIONS\MICROSOFT\CMAKE\Ninja\ninja.exe" "C:\putty\putty-src" 2>&1"
1> Working directory: C:\putty\putty-src\out\build\arm64-Clang-Debug
1> [CMake] -- The C compiler identification is Clang 15.0.1 with MSVC-like command-line
1> [CMake] -- Detecting C compiler ABI info
1> [CMake] -- Detecting C compiler ABI info - done




From these messages, you can see that the Compiler being used to build the PuTTY application is Clang 15.0.1.

This is the version of the LLVM toolchain installed with Visual Studio.

  1. Modify the windows.cmake file

In Solutions Explorer browse to the cmake-> platforms directory and open the windows.cmake file.

Search for /C1252 in this file and replace with -c1252

After the change, it should look like:




          set(CMAKE_RC_FLAGS "${CMAKE_RC_FLAGS} /nologo -c1252")



Note

The cmake helper tool cmcldeps.exe has an issue understanding the entire command-line syntax with “/” used to to pass a command-line option. You can use “-” instead to pass the command line option.

  1. Build the application

Select Build->Build-All

When the build process completes, there will be a new executable putty.exe in your configuration build folder C:\putty\putty-src\out\build\arm64-Clang-Debug

This is the PuTTY application that you natively compiled on your Windows on Arm machine with the LLVM toolchain.

Double-click it to run and check that it works on your Windows on Arm device.

If you right click on the PuTTY application and select Properties, on the Compatibility tab you will see the Windows on Arm emulation settings are disabled. This shows the application was natively built for Windows on Arm.

Image Alt Text:putty_6

Change to a different version of LLVM

If you would like to build with a different version of LLVM, you will need to make a change in the CMake settings.

At the time of writing, the latest version with Windows on Arm support is LLVM 16.0.0.

Ensure you have downloaded and installed LLVM 16.0.0

On CMake Settings page in Visual Studio, select the Show advanced variablescheckbox under CMake variables and cache.

Change the value of CMAKE_C_COMPILER to point to the location where you have installed LLVM 16.0.0.

For example: C:\Program Files\LLVM\bin\clang-cl.exe. Click on the Save to JSON checkbox next to this field and Save.

Image Alt Text:putty_5

Saving this change will automatically trigger the CMake cache variables to be re-generated and loaded.

You should see output similar to what is shown below:




        1> [CMake] -- The C compiler identification is Clang 16.0.0 with MSVC-like command-line
1> [CMake] -- Detecting C compiler ABI info
1> [CMake] -- Detecting C compiler ABI info - done




The Clang version is now 16.0.0.
